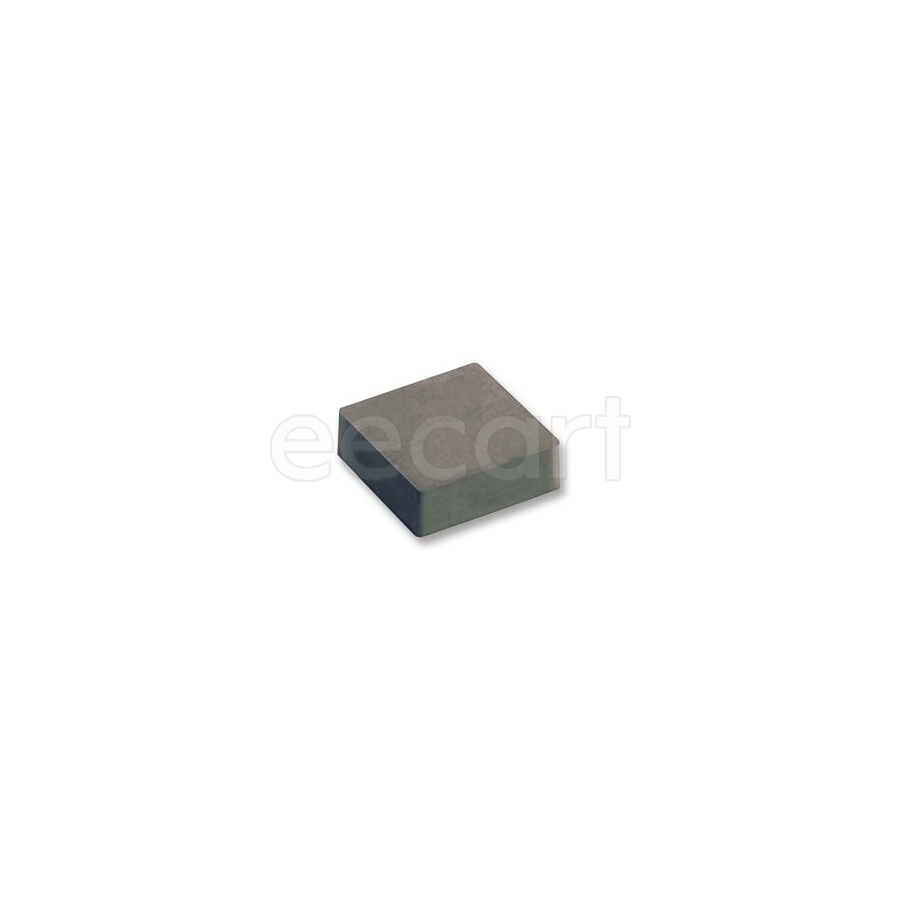

74438323100
Manufacturer:
Wurth Electronics
Mfr.Part #:
74438323100
Datasheet:
Description:
Fixed Inductors 1008(2520 Metric) SMD/SMT 10 µH 20 % 600 mA 843 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 0.991 mm |
| Length | 2.5 mm |
| Width | 2.0066 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 2 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 32.006612 mg |
| Self Resonant Frequency | 25 MHz |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 843 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Composite, Ferrite, Metal |
| RMS Current (Irms) | 600 mA |
| inductance tolerance | 20 % |
| Max DC Current | 600 mA |
| Series Resistance | 733 mΩ |
| Saturation Current | 1.35 A |
| Type | Wirewound |
Stock: 10610
Distributors
pcbx
pcbxUnit Price$0.68223
Ext.Price$0.68223
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68223 | $0.68223 |
| 10 | $0.67625 | $6.76250 |
| 25 | $0.66025 | $16.50625 |
| 50 | $0.64462 | $32.23100 |
| 100 | $0.61811 | $61.81100 |
| 300 | $0.60472 | $181.41600 |
| 500 | $0.59161 | $295.80500 |
| 1000 | $0.55570 | $555.70000 |
| 3000 | $0.48731 | $1461.93000 |
